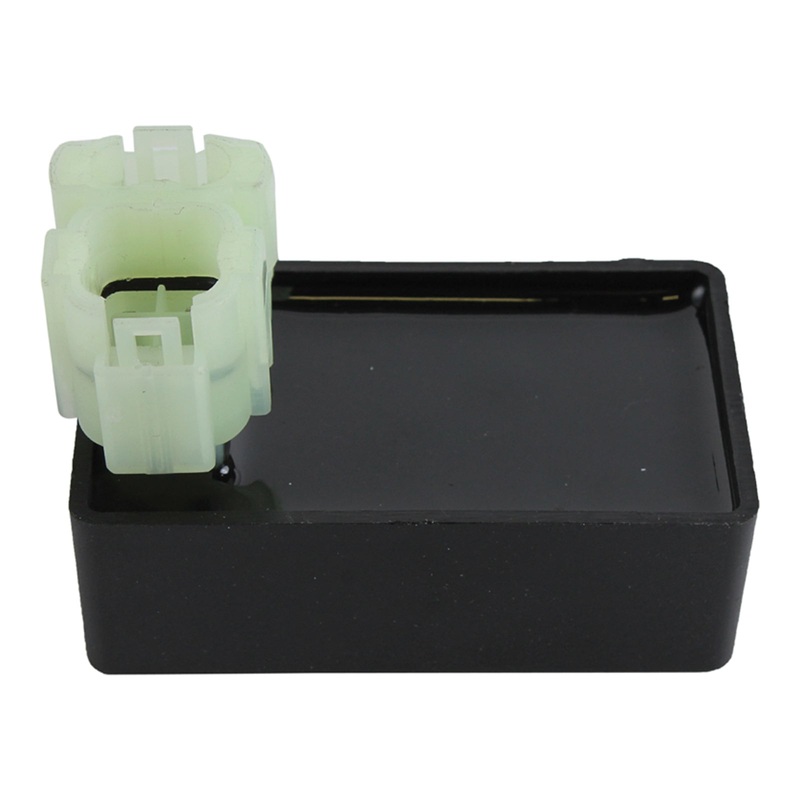

High Performance CDI – Yamaha YFM250 ’01-’04 (RM02160)

Description

Brand new High-Performance aftermarket CDI box.

Features:

• Our PeakRPM technology provides a mor aggressive timing curve for increased throttle response.
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM.
• Enjoy fast and easy installation with our plug and play desig and included dielectric connector grease.
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
• 90% of ignition issues are caused by a faulty stator. Full test ignition components before buying.

Dimensions:

• Height: 27mm
• Length: 96mm
• Width: 87mm
• Fixation holes centre to centre: 70mm

Other specifications:

• Number of plugs: 1
• Number of pins: 8

Note:

1. T only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
2. All electrical components must be fitted by a qualified technician.
3. Before fitting electrical components ensure the root cause of the original failure has been addressed.
4. The absence of either of points 1 or 2 above, will void any warranty.
